FLANGES

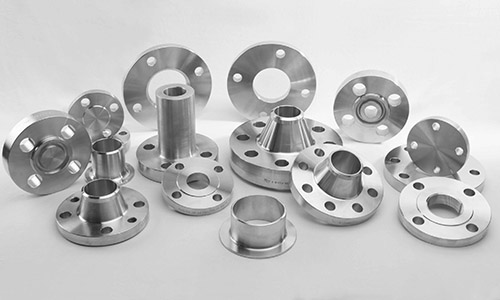

Flanges

Flanges is a forged or cast ring of steel designed to connect mechanically sections of pipe or join pipe to a pump, valve, pressure vessel or any other piece of equipment. Stainless Steel Flanges And Carbon Steel Flanges & Alloy Steel Flanges provide easy access for modification, cleaning or inspection. They usually come in various shapes, Pressure Rating, Weight Chart, Dimensions, size, grades & specifiaction with ANSI/ ASME, EN, BS, DIN standards. The Flanges are joined to each other by bolting and joined to the piping system by threading or welding and are designed to the specific pressure ratings; 150lb, 300lb, 400lb, 600lb, 900lb, 1500lb and 2500lb.

MS Butweld Fittings
Forged Socket Weld Fittings

We Are the specialist in manufacturer of ms, ss, copper and brass pipe fittings We also deals in all types of ferrous and non ferrous metal.

On Butweld Fittings We Deals In Tee, Elbow 45 Degree, Elbow 95 Degree, Elbow 180 Degree, Couplinks, Reducer, Stub End, Neck Ring We Have good market reviews for fast and prompt delivery. we have best and experianced employee envolvement by which we are able to give a good quality of products. all the products are also goes for inspection proccess after that we supply to all over india and abroad.

Flanges Specification

Flanges Size Chart 1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Flanges Standards ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Flanges Pressure Rating ANSI Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Flanges
Flanges Pressure Calculation in DIN 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Flanges
Coating Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Flanges
Most common types of Flanges Forged / Threaded / Screwed / Plate
Flanges Manufacturers in india

ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
Flanges: -BS Flanges, EN Flanges, API 6A Flanges, ANSI Flanges, ASME Flanges, DIN Flanges, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange

  • German (DIN)
  • British standard (BS)
  • DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 Flanges
  • B.S: BS4504 , BS3293, BS1560, BS10
  • AS 2129: Table D; Table E; Table H
  • ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
  • ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48
  • ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
  • American standard (ANSI)
  • The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276
Flanges Uses & application
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production technique
  • Forged, Heat treated and machined
JIS Flanges 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K Flanges
UNI Flanges 6Bar 10Bar 16Bar 25Bar 40Bar Flanges
EN Flanges 6Bar 10Bar 16Bar 25Bar 40Bar Flanges
Connect Type/ Flanges Face Type Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove
Flanges Special design

As per your drawing

AS, ANSI, BS, DIN and JIS
15 NB (1/2") to 200 NB (8")
Equal and Reducing Configurations
Test Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc
Origin Indian / West Europe / Japan / USA / Korean
Export to Ireland, Singapore, Indonesia, Ukraine, Saudi Arabia, Spain, Canada, USA, Brazil, Thailand, Korea, Iran, India, Egypt, Oman, Dubai, Peru, etc
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

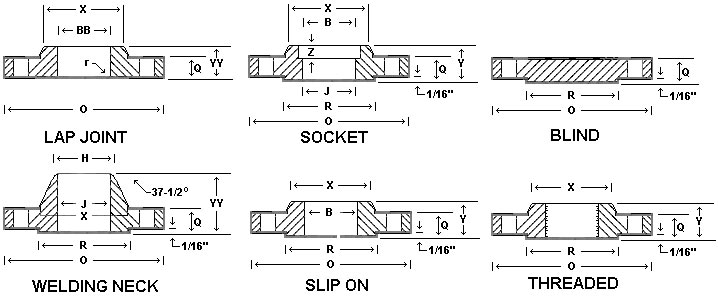

Flanges Dimensions

Flanges Dimensions

Flanges Dimensions

DN
(inch) 		Dimension ANSI B16.5 Flange Dimensional Sizes 3 to 10 inches Table Chart
125 lbs
150 lbs		 300 lbs 400 lbs 600 lbs 900 lbs 1500 lbs 2500 lbs
inch mm inch mm inch mm inch mm inch mm inch mm inch mm
3 A 7 1/2 190.5 81/4 209.6 81/4 209.6 8 1/4 209.6 9 1/2 241 10 1/2 267 12 305
b 15/16 23.8 1 1/8 28.6 11/4 31.8 1 1/4 31.8 1 1/2 38.1 1 7/8 47.6 2 5/8 66.7
D2 5 127 5 127 5 127 5 127 5 127 5 127 5 127
D1 6 152.4 6 5/8 168.3 6 5/8 168.3 6 5/8 168.3 71/2 190.5 8 203 9 228.6
n 4 4 8 8 8 8 8 8 8 8 8 8 8 8
d 3/4 19 7/8 22.2 7/8 22.2 7/8 22.2 1 25.4 1 1/4 31.8 1 3/8 34.9
3 1/2 A 8 1/2 215.9 9 228.6 9 228.6 9 228.6 - - - - - -
b 15/16 23.8 13/16 30.2 13/8 34.9 13/8 34.9 - - - - - -
D2 5 1/2 139.7 5 /2 139.7 5 1/2 139.7 5 1/2 139.7 - - - - - -
D1 7 177.8 7 1/4 184.2 7 1/4 184.2 7 1/4 184.2 - - - - - -
n 8 8 8 8 8 8 8 8 - - - - - -
d 3/4 19 7/8 22.2 1 25.4 1 25.4 - - - - - -
4 A 9 228.6 10 254 10 254 10 3/4 273 11 1/2 292 12 1/4 311 14 356
b 15/16 23.8 1 1/4 31.7 1 3/8 34.9 1 1/2 38.1 1 3/4 44.4 2 1/8 54 3 76.2
D2 6 3/16 157.2 6 3/16 157.2 6 3/16 157.2 6 3/16 157.2 6 3/16 157.2 6 3/16 157.2 6 3/16 157.2
D1 7 1/2 190 7 7/8 200 7 7/8 200 8 1/2 215.9 9 1/4 235 9 1/2 241 10 3/4 273
n 8 8 8 8 8 8 8 8 8 8 8 8 8 8
d 3/4 19 7/8 22.2 1 25.4 1 25.4 1 1/4 31.8 1 3/8 34.9 1 5/8 41.3
5 A 10 254 11 279.4 11 279.4 13 330.2 13 3/4 349 14 3/4 375 16 1/2 419
b 1 5/16 23.8 13/8 34.9 1 1/2 38.1 1 3/4 44.4 2 50.8 2 7/8 73 3 5/8 92.1
D2 7 5/16 185.7 7 5/16 185.7 7 5/16 185.7 7 5/16 185.7 7 5/16 185.7 7 5/16 185.7 7 5/16 185.7
D1 8 1/2 215.9 9 1/4 234.9 9 1/4 234.9 10 1/2 266.7 11 279 11 1/2 292 12 3/4 324
n 8 8 8 8 8 8 8 8 8 8 8 8 8 8
d 7/8 22.2 7/8 22.2 1 25.4 1 1/8 28.6 1 3/8 34.9 1 5/8 41.3 1 7/8 47.6
6 A 11 279 12 1/2 317.5 12 1/2 317.5 14 355.6 15 381 15 1/2 394 19 483
b 1 25.4 17/16 36.5 1 5/8 41.3 1 7/8 47.6 2 3/16 55.6 3 1/4 82.6 4 1/4 108
D2 8 1/2 216 8 1/2 215.9 8 1/2 215.9 8 1/2 215.9 8 1/2 215.9 8 1/2 215.9 8 1/2 216
D1 9 1/2 241 10 5/8 269.9 10 5/8 269.9 11 1/2 292.1 12 1/2 318 12 1/2 318 14 1/2 368
n 8 8 12 12 12 12 12 12 12 12 12 12 8 8
d 7/8 22.2 7/8 22.2 1 25.4 1 1/8 28.6 1 1/4 31.8 1 1/2 38.1 2 1/8 54
8 A 13 1/2 342.9 15 381 15 381 16 1/2 419 18 1/2 470 19 482.6 21 3/4 552
b 1 1/8 28.6 1 5/8 41.3 1 7/8 47.6 2 3/16 55.6 2 1/2 63.5 3 5/8 92.1 5 127
D2 10 5/8 269.9 10 5/8 269.9 10 5/8 269.9 10 5/8 269.9 10 5/8 269.9 10 5/8 269.9 10 5/8 269.9
D1 11 3/4 298.4 13 330.2 13 330.2 13 3/4 349.2 15 1/2 394.2 15 1/2 394.2 17 1/4 438
n 8 8 12 12 12 12 12 12 12 12 12 12 12 12
d 7/8 22.2 1 25.4 1 1/8 28.6 1 1/4 31.8 1 1/2 38.1 1 3/4 44.5 2 1/8 54
10 A 16 406.4 17 1/2 444.5 17 1/2 444.5 20 508 21 1/2 546 23 584 26 1/2 673
b 1 3/16 30.2 1 7/8 47.6 2 1/8 54 2 1/2 63.5 2 3/4 69.8 4 1/4 108 6 1/2 165
D2 12 3/4 323.8 12 3/4 323.8 12 3/4 323.8 12 3/4 323.8 12 3/4 323.8 12 3/4 323.8 12 3/4 323.8
D1 14 1/4 361.9 15 1/4 387.4 15 1/4 387.4 17 431.8 18 1/2 470 19 482.6 21 1/4 540
n 12 12 16 16 16 16 16 16 16 16 12 12 12 12
d 1 25.4 1 1/8 28.6 1 1/4 31.8 1 3/8 34.9 1 1/2 38.1 2 50.8 2 5/8 66.7

Flange Weight Chart

Flange Weights by Pressure Class and Size
Pipe Size 150 # 300 # 600 # 900 # 1500 # 2500 #
WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD
1/2" 2 1 1 2 1 1 2 2 2 SEE 1500 # WEIGHTS 5 4 4 7 7 7
3/4" 2 2 2 3 3 3 4 3 3 SEE 1500 # WEIGHTS 6 5 6 8 8 8
1" 3 2 2 4 3 3 4 4 4 SEE 1500 # WEIGHTS 9 8 8 12 11 11
1 1/2" 4 3 3 7 6 6 8 7 8 SEE 1500 # WEIGHTS 13 12 13 25 22 23
2" 6 5 5 9 7 8 12 9 10 SEE 1500 # WEIGHTS 25 25 25 42 37 39
2 1/2" 8 7 7 12 10 12 18 13 15 SEE 1500 # WEIGHTS 36 36 35 52 55 56
3" 10 8 9 15 13 16 23 16 20 31 26 29 48 48 48 94 83 86
4" 15 13 17 25 22 27 42 37 41 53 53 54 73 73 73 145 125 130
5" 19 15 20 32 28 35 68 63 68 86 83 87 130 130 140 245 210 225
6" 24 19 26 42 39 50 81 80 86 110 110 115 165 165 160 380 325 345
8" 39 30 45 67 58 81 120 115 140 175 170 200 275 260 300 580 485 530
10" 52 43 70 91 81 124 190 170 230 260 245 290 455 435 510 1075 930 1025
12" 80 64 110 140 115 185 225 200 295 325 325 415 690 580 690 1525 1100 1300
14" 110 90 140 180 165 250 280 230 355 400 400 520 940 NA 975 NA NA NA
16" 140 98 180 250 190 295 390 330 495 495 425 600 1250 NA 1300 NA NA NA
18" 150 130 220 320 250 395 475 400 630 680 600 850 1625 NA 1750 NA NA NA
20" 180 165 285 400 315 505 590 510 810 830 730 1075 2050 NA 2225 NA NA NA
22" 225 185 355 465 370 640 720 590 1000 NA NA NA NA NA NA NA NA NA
24" 260 220 430 580 475 790 830 730 1250 1500 1400 2025 3325 NA 3625 NA NA NA
